7 Way Micro Duct Pipes to Building the Industrial City’s Digital Backbone
Kanpur, the industrial capital of Uttar Pradesh, has long been known for its leather tanneries, textile mills, and defense manufacturing. But today, Kanpur is undergoing a parallel transformation – into a digital hub. With the Kanpur Smart City project, the expansion of the Indian Institute of Technology (IIT) Kanpur’s innovation ecosystem, and aggressive fiber rollout by telecom operators, the demand for underground cable protection has skyrocketed.
As a leading 7 way multi ducts manufacturer in Kanpur, we provide high-density polyethylene (HDPE) duct banks that protect fiber optic cables and power lines across this sprawling industrial city. In this guide, we will cover everything you need to know about 7 way multi ducts for Kanpur’s unique environment – from the congested bylanes of Colonelganj to the wide roads of Panki and Kalyanpur.
What is a 7 Way Multi Duct? (Industrial City Perspective)

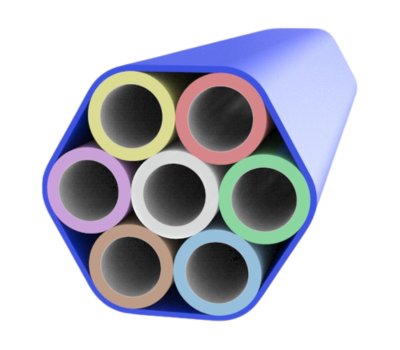

A 7 way multi duct is a single extruded HDPE jacket containing seven individual inner microducts. For Kanpur, where industrial areas require robust connectivity and residential areas are densely packed, this product offers the perfect balance of capacity and trench efficiency.
Standard Specifications for Kanpur Projects
| Parameter | Specification |
|---|---|
| Number of inner ducts | 7 |
| Inner duct sizes | 28/32 mm, 32/36 mm, 40/46 mm |
| Outer jacket OD | 90 mm to 125 mm |
| Material grade | PE100 HDPE (virgin grade) |
| UV protection | 2.5% carbon black |
| Inner duct colors | 7 distinct colors for easy identification |
| Standard coil length | 500 m or 1000 m |
| Crush strength | ≥400 N/100mm |
| Abrasion resistance | Excellent (critical for industrial areas) |
| Chemical resistance | Resists oils, acids, alkalis (pH 2-12) |
| Standards | IS 15560 (Part 2), TEC approved |
Why Kanpur Needs Dedicated 7 Way Multi Duct Manufacturing
1. Industrial Area Connectivity
Kanpur’s industrial zones – Panki, Fazalganj, Jajmau, Kalpi Road – require high-reliability fiber connectivity for:
-
Industrial IoT (Internet of Things) sensors
-
CCTV surveillance
-
Enterprise broadband
-
SCADA systems for utility monitoring
A single 7 way duct can serve all these needs.
2. Dense Residential & Commercial Mix
From the old city (Colonelganj, Birhana Road, Mall Road) to newer areas (Kakadeo, Govind Nagar, Barra), trenching space is limited. A 7 way multi duct reduces trench width from 1 meter to 30 cm.
3. Kanpur Smart City Mission
Smart City projects in Kanpur include:
-
Integrated traffic management along Grand Trunk Road
-
Smart streetlights in 200+ wards
-
Public Wi-Fi at major intersections
-
Underground cabling for 33 kV and 11 kV feeders
All require duct banks. 7 way ducts provide the necessary separation between power and fiber.
4. IIT Kanpur & Research Corridor
IIT Kanpur is not just an educational institution – it is a research and startup hub. The surrounding area (Kalyanpur) is developing as a tech corridor. Future-proof infrastructure here is critical.
5. High Corrosion Environment
Kanpur’s industrial effluents (from tanneries and chemical plants) can create corrosive soil conditions. HDPE is immune to corrosion. GI or concrete ducts degrade rapidly.
7 Way Multi Ducts vs. Alternatives for Kanpur
| Feature | 7 Way HDPE Multi Duct | 7 Individual HDPE Pipes | PVC Conduit | GI Pipe |
|---|---|---|---|---|
| Trench width | 30 cm | 90+ cm | 60 cm | 70 cm |
| Industrial chemical resistance | Excellent | Excellent | Good | Poor (rusts) |
| Installation speed | Fast | Slow | Moderate | Slow |
| Cost per meter | ₹180–₹350 | ₹280–₹450 | ₹150–₹250 | ₹400–₹700 |
| Life in corrosive soil | 50+ years | 50+ years | 15–20 years | 5–10 years |
Key Applications of 7 Way Multi Ducts in Kanpur
1. Industrial IoT & SCADA Networks
Panki Thermal Power Station, fertilizer plants, and defense establishments require secure, redundant fiber paths. 7 way ducts allow for multiple redundant routes in one trench.
2. Smart City Infrastructure
-
Traffic management: Cameras at 50+ intersections along GT Road, Kalyanpur Road, and Airport Road
-
Surveillance: City-wide CCTV network
-
Environmental sensors: Air quality monitoring at 10 locations
3. BharatNet (Kanpur Nagar District)
Kanpur Nagar has over 200 gram panchayats. Main aggregation routes from Kanpur city to blocks like Bilhaur, Ghatampur, and Sarsaul require multi-duct infrastructure.
4. Educational Institutions
-
IIT Kanpur (campus and connectivity to city)
-
CSJM University (Kanpur University)
-
Harcourt Butler Technical University (HBTU)
-
GSVM Medical College
5. Defense Establishments
Kanpur has significant defense presence (ordinance factories, army units). Secure fiber connectivity requires dedicated, protected pathways that 7 way ducts provide.
Manufacturing Quality for Industrial Environments
As a 7 way multi ducts manufacturer in Kanpur, we understand industrial demands:
| Test | Requirement | Why It Matters for Kanpur |
|---|---|---|
| Crush resistance | ≥400 N/100mm | Heavy industrial traffic overhead |
| Chemical resistance | pH 2-12 | Tannery effluents in soil |
| UV resistance | 2.5% carbon black | Exposed sections near factories |
| Anti-rodent | Capsaicin additive | Warehouses and godowns |
| Tensile strength | ≥20 MPa | Pulling through congested areas |
| Elongation | ≥350% | Flexibility for ground settlement |
Installation Best Practices for Kanpur
Industrial Areas (Panki, Fazalganj, Jajmau)
| Parameter | Recommendation |
|---|---|
| Depth | 1,000 mm (due to heavy vehicle loads) |
| Bedding | 150 mm concrete (M10 grade) for protection |
| Warning tape | Heavy-duty detectable tape |
| Backfill | Compacted native soil, no large rocks |
Old City Areas (Colonelganj, Birhana Road)
| Parameter | Recommendation |
|---|---|
| Method | Mini-HDD (directional drilling) preferred |
| Trenching if unavoidable | Night work only (10 PM–5 AM) |
| Bending radius | 20× OD minimum |
| Joints | Minimal number; use longer coil lengths (1000 m) |
New Developments (Kalyanpur, Barra, Kakadeo)
| Parameter | Recommendation |
|---|---|
| Depth | 600 mm standard |
| Future expansion | Leave pull ropes in 2 spare inner ducts |
| Manhole spacing | Every 500–700 m |
Fiber Blowing for Kanpur Projects
| Parameter | Recommendation |
|---|---|
| Air pressure | 8–12 bar |
| Lubricant | Water-based, HDPE-compatible |
| Max blowing distance | 1,200 m (for 32 mm ID) |
| Blowing speed | 40–60 m/min |
Industrial Area Precautions
-
Dust and particulate matter are high in areas like Panki and Jajmau. Cap duct ends immediately after installation.
-
Flush ducts before blowing fiber.
Cost Economics for Kanpur
| Duct Type | Price per Meter (₹) | Typical Kanpur Use |
|---|---|---|
| 7 × 28/32 mm | 180–220 | Last-mile, residential areas |
| 7 × 32/36 mm | 240–290 | Standard backbone, industrial |
| 7 × 40/46 mm | 350–420 | Long-haul, IIT corridor |
Sample 10 km project (Panki to Kalyanpur backbone): Total cost approximately ₹35–40 lakh including installation. 35% savings vs individual pipes.
Why Choose Us as Your Kanpur Manufacturer?
1. Local Presence
We manufacture near Kanpur. Delivery within 1–3 days across the district.
2. Industrial Grade Products
Our ducts have enhanced chemical resistance and higher crush strength for industrial areas.
3. Proven Track Record
-
Panki Thermal Power Station fiber backbone (8 km)
-
Kanpur Smart City traffic management system (12 km)
-
IIT Kanpur campus connectivity (5 km)
4. Technical Support
-
Free site visits
-
Installation training
-
Fiber blowing demonstration
-
24/7 field support
5. Customization
-
Logo printing
-
Custom color coding
-
Enhanced wall thickness for industrial zones
Case Study: Panki Industrial Area Fiber Backbone
Project: 8 km fiber backbone connecting 25+ industrial units in Panki for IoT-based energy monitoring
Challenge: High chemical concentration in soil, heavy truck traffic, corrosive environment
Solution:
-
7 way multi duct (7×32/36 mm) with enhanced chemical resistance
-
PE100 grade, anti-rodent additive
-
Installed at 1.2 m depth with concrete bedding
Result: 2 years operational, zero failures. Chemical resistance confirmed.
Conclusion
Kanpur’s industrial heritage is meeting its digital future. The 7 way multi duct is the ideal solution for the city’s unique challenges – industrial corrosion, dense urban areas, and the need for future-proof infrastructure.
As a trusted 7 way multi ducts manufacturer in Kanpur, we deliver quality, local availability, and technical expertise.
Contact us today for a free quote and site consultation.
